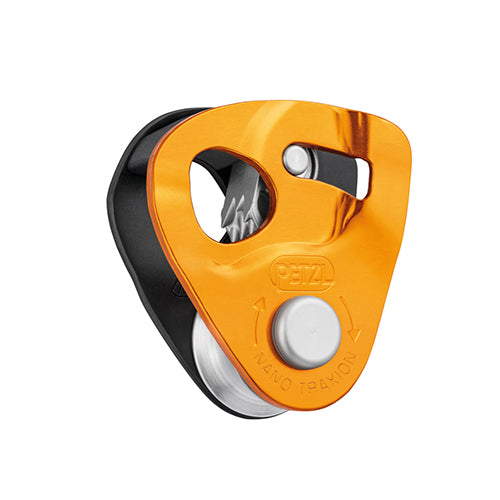

High efficiency, ultra-light progress capture pulley

NANO TRAXION is an ultra-lightweight (53 g) and compact progress-capture pulley designed for rescue. Sealed ball bearings provide excellent efficiency (91 %).

Ultra-light and compact: - only 53 g - very compact - hole allows a Sm'D carabiner to be connected to the pulley with a cord, making the device loss-proof

Designed for rescue

High efficiency: - sealed ball bearings provide excellent efficiency (91 %) - locks even on frozen or muddy ropes - for use on 7 to 11 mm diameter ropes - rope installation diagrams engraved inside pulley

Specifications

Weight: 53 g

Certification(s): CE EN 567, UIAA

Min. rope diameter: 7 mm

Max. rope diameter: 11 mm

Sheave type: sealed ball bearings

Sheave diameter: 18 mm

Breaking strength: 2 x 7,5 = 15 kN

Breaking strength as progress capture pulley: 4 kN

Efficiency: 91 %
